Piping System
TPS Series TOFPINE

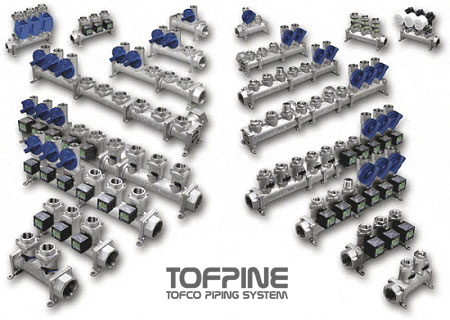

A revolutionary new manifold system for liquid distribution, measurement and control

Owing to proprietary structure and the most versatile piping variation, Centralized Piping Unit enabled us to make up a free combination of piping system.


Feature

• No welds – Create and design as you go!

• Integrate flow meters, flow controllers & valves

• Scalable with small footprint & minimized volume

• Easily adaptable for NPT connections

• Shut-off capability with manual or solenoid valves

• Ultimate freedom of design



  Fluid

• Water


  Pipe size

  Measuring range	Sub Port	Main Port
  0.5 - 5L/min	Rc1/4'',Rc3/8'',Rc1/2'',R1/2''	Rc3/4'',Rc1''
  1 - 10L/min
  2 - 20L/min
  3 - 30L/min	Rc1/2'',Rc3/4''	Rc1'',Rc1 1/4 ''
  5 - 50L/min


  Specifications


  Fluid	Liquid
  Flow output signal	Pulse output	DC26.4V,15mA
  	Analog output	DC4 - 20mA
  		DC0 - 5V/1 - 5V/0 - 10V/ 1 - 10V
  Powor supply	DC5 - 24V
  Wetted materials	SCS13
