Flow Control Valve
MCV-M Series (3-Way)

Direct-drive control valves operating from -40　to 180°C with water, Galden®, Fluorinert™ and　other advanced heat transfer fluids.

Feature

• Direct control of flow or temperature from your PID controller with 4–20 mA, 1–5 VDC or 1–10 VDC

• Select flow ranges from 10.4 to 133 LPM / 2.8 to 35 GPM

• Fast: 6 seconds from 0 to 100% open

• Compact design minimizes space requirements

• 3400 steps provide fine, fast valve control

• O-ring material selectable to match liquid and temperature range requirements

• Connects directly to Tofpine manifold components

• Rc connection ports



  Example Application


  Direct control of output from a heat exchanger.
  FCV-M Series Flow Control Valves are controlled by an external PID controller using an accompanying driver unit. Valve position is controlled and continuously monitored by the PID controller with a 4–20 mA or DC signal.

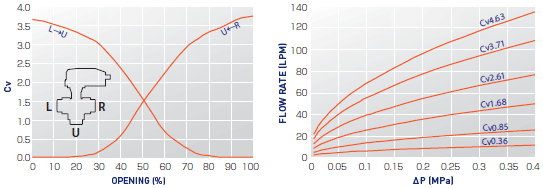

  Data


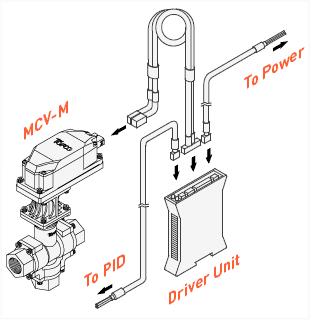

  Interconnection



  Wetted Materials

  O-Ring Material	Temperature Range
  Buna-N	-30 to 100°C
  Viton®	-15 to 200°C
  EPDM	-45 to 130°C
  Silicone Rubber	-50 to 200°C

  Materials in the flow path are 304 stainless steel and filled PTFE. O-ring material is selected for compatibility with your fluid and temperature range.

  Specifications


  Model		MCV-M32
  Orifice Diameter (mm)		φ 10.0
  Flow Limit (Water at 0.4 MPa / 58 PSI ΔP)		133 LPM
  		35 GPM
  Fluid Type	> Rc	Rc3/4” • Rc14”
  Fluid Type		Water, water/glycol mixtures, Galden®, Fluorinert™, silicone oils, etc.
  Fluid Temperature*		0–60°C • 0–130°C • -20–100°C • -40–130°C • 0–180°C
  Ambient Environment		5–50°C; 30–80% relative humidity; non-condensing
  Maximum Applied Differential Pressure (ΔP)		0.4 MPa / 58 PSI
  Maximum Operating Pressure		1.0 MPa / 145 PSI
  Power Source		24 VDC ± 10%; 300 mA
  I/O Signal		4–20 mA • 1–5 VDC • 1–10 VDC
  Input Impedance		20Ω for 4–20 mA • 1MΩ for 1–5 VDC/1–10 VDC
  Output Allowable Load Resistance		< 300Ω for 4–20 mA • >1KΩ for 1–5 VDC/1–10 VDC
  Drive System		DC stepper motor
  Resolution of Valve Movement		~3400 steps
  Response Time (0 to 100% Open)		Response Time (0 to 100% Open) ~6 seconds
  Hysteresis		< 1.5%
  Water and Dust Proofing		IP67
  Wetted Materials*		304 Stainless Steel, filled PTFE • Buna-N, EPDM, Silicone rubber, Viton®
  Weight (Valve Unit)		~ 1.8 kg


  *Depends on fluid type.

  Information in this document was correct at the time of printing; however, specifications are subject to change as Toflo Corporation’s continuous improvement processes establish new capabilities.
